![Servo Motor for Packaging Machine]()
Servo Motor for Packaging MachineCiitto Sevo’s permanent magnet synchronous universal servo motor adopts new generation of high efficiency magnetic circuit technology, deep field weakening technology, precision dynamic balancingread more -
![Servo Motor with Position Encoder]()
Servo Motor with Position EncoderTo meet the exacting standards of modern applications, Ciitto Servo’s permanent magnet servo motors are configured with different types of high precision position encoders such as Endatread more -
![Liquid Cooled Permanent Magnet Servo Motor]()
Liquid Cooled Permanent Magnet Servo MotorUnlock the future of industrial performance with our cutting-edge Permanent Magnet Servo Universal Liquid Cooled Motor. Designed for efficiency and versatility, this advanced motor is engineered toread more -
![Permanent Magnet Synchronous Servo Motor]()
Permanent Magnet Synchronous Servo MotorCiitto Servo's permanent magnet synchronous servo motor stands out with its high torque density and exceptional responsiveness, ensuring smooth operation even at low speeds. It is equipped with highread more -
![Servo Motor for CNC Machine]()
Servo Motor for CNC MachineCiitto Servo’s permanent magnet synchronous servo AC motor is a motor designed for precision control and high-performance applications. It can be precisely control the speed and position and convertread more -
![Liquid Cooled Permanent Magnet Servo Motor]()
Liquid Cooled Permanent Magnet Servo MotorCiitto Servo’s permanent magnet synchronous servo liquid cooled motor uses a liquid cooling medium that flows through cooling channels of the motor housing. The coolant circulates in the coolingread more -

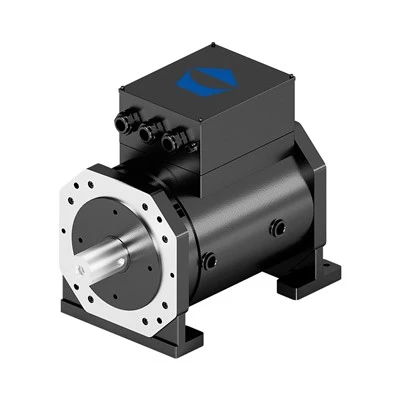

![Servo Motor for Battery Equipment]()
Servo Motor for Battery EquipmentIPM (Interior Permanent Magnet) universal servo motors are a type of motor with permanent magnets embedded within the rotor, specifically designed for servo systems. Servo motors use feedback controlread more -

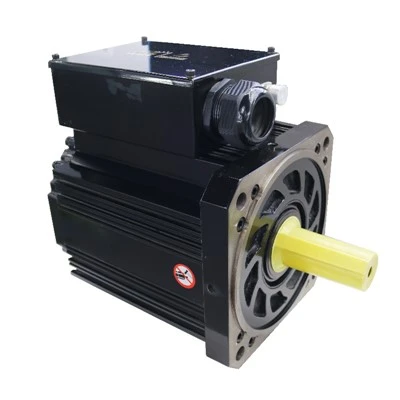

![Industrial Servo Motor]()
Industrial Servo MotorIndustrial Servo Motor refers to a surface permanent magnet synchronous motor, which is characterized by the attachment of a permanent magnet to the outer surface of the rotor. This design allows SPMread more -

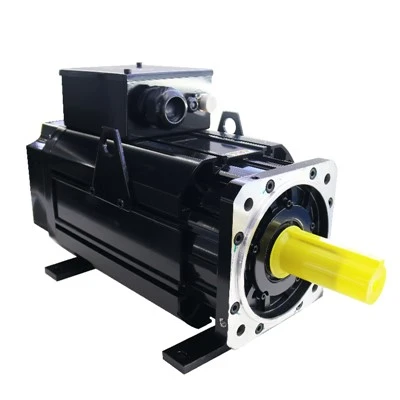

![Servo Motor for Automation Applications]()
Servo Motor for Automation ApplicationsServo Motor for Automation Applications adopts high density magnetic optimization design, high unit volume ferromagnetic material density structure, equipped with high precision position encoder,read more -
![Permanent Magnet Servo Motor for Robot]()
Permanent Magnet Servo Motor for RobotRobot permanent magnet servo motor is a kind of high performance motor, which is widely used in industrial automation, robot joint and other fields. They use permanent magnets to generate magneticread more -

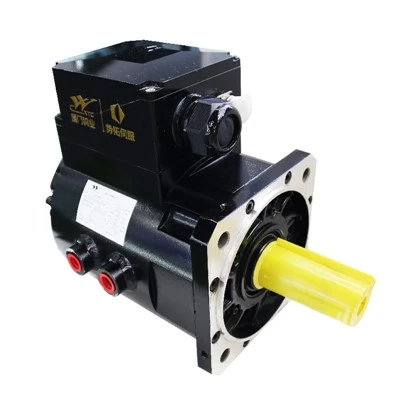

![Permanent Magnet Servo Motor]()
Permanent Magnet Servo MotorPermanent magnet servo AC motor, especially permanent magnet synchronous servo motor (PMSM), is a high-performance motor, widely used in the need for high precision and high response speed occasions,read more -

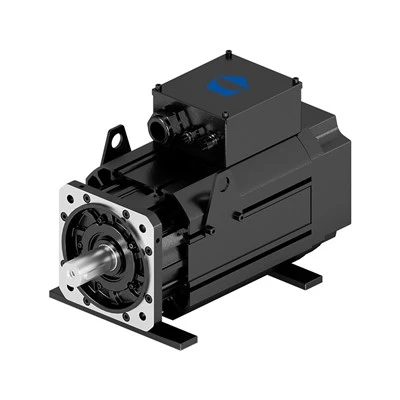

![Servo Three-phase Motor]()
Servo Three-phase MotorThree-phase servo motor Integrated electronics, control theory, and power electronics technology to achieve precise control over the motor's movement by accurately controlling its current and voltage.read more
Heavy-Duty AC Servo Motor Internal Architecture
Designed for ultra-fast acceleration and millimeter-level positioning repeatability. Engineered with high-coercivity rare-earth NdFeB permanent magnets, 23-bit optical encoders, and dynamic rotor balance for smooth low-speed performance.
- ✔ 23-Bit Optical Absolute Encoder: Delivers ±0.001mm positioning repeatability with high noise immunity.
- ✔ Ultra-Low Cogging Torque: Skewed stator design prevents velocity ripple and mechanical vibration during micro-feeding.
- ✔ IP65 Water & Oil Protection: Precision fluorine rubber oil seals protect internal windings from cutting fluid mist.
Common Motion Control Challenges in Industrial Automation
Machinery builders and automation engineers frequently face positioning drift, thermal demagnetization, and communication protocol mismatches. Our AC servo motors eliminate these exact bottlenecks.
🔥 1. High-Duty Overheating & Power Drop
Rapid start-stop duty cycles cause thermal buildup, leading to encoder failure and motor torque degradation.
📉 2. Positioning Vibration & Torque Ripple
Unstable torque output at low RPM creates surface chatter marks in CNC milling and high-precision machining.
⚠️ 3. Drive Communication Incompatibility
Feedback signal mismatch with local PLC systems (EtherCAT, CANopen, Modbus) delays line commissioning.
Our Engineered Solutions & Factory Advantages
🌡️ Class H High-Temperature Insulation
Vacuum-pressure impregnated copper windings and SH-grade magnets withstand continuous operation up to 180°C without loss of flux.
🎯 Multi-Protocol Drive Integration
Seamless plug-and-play synchronization with main European, Japanese, and American PLC/CNC motion controllers.
🔬 High Overload Torque Capacity
Delivers up to 300% peak instantaneous torque for fast dynamic acceleration and heavy inertia load pick-up.
AC Servo Motor Technical Specifications
Review our standardized AC servo motor series parameters below. Customized shaft keyways, power-off holding brakes, and tailored flange dimensions are fully supported.
| Model Series | Rated Power (kW) | Rated Torque (N.m) | Rated Speed (RPM) | Flange Size (mm) |
|---|---|---|---|---|
| CTS-60 Series | 0.2kW - 0.6kW | 0.64 - 1.91 N.m | 3000 RPM | 60 x 60 |
| CTS-80 Series | 0.75kW - 1.0kW | 2.39 - 4.0 N.m | 2500 / 3000 RPM | 80 x 80 |
| CTS-130 Series | 1.5kW - 3.8kW | 6.0 - 15.0 N.m | 2000 / 2500 RPM | 130 x 130 |
| CTS-180 Heavy Series | 4.5kW - 7.5kW | 18.0 - 35.0 N.m | 1500 / 2000 RPM | 180 x 180 |
Target B2B Industry Sectors & Application Scenarios
We supply high-performance AC servo motors directly to global automation OEMs and motion control system integrators:
🏭 CNC Machine Tools
Multi-axis CNC milling, turning lathes, laser cutters, and EDM wire erosion machinery.
🤖 Industrial Robotics
Articulated robotic arm joints, SCARA robot pick-and-place, and AGV drive wheels.
📦 Packaging & Textile Machinery
High-speed rotary packaging, labeling machinery, and computerized textile weaving gear.
🔧 Automation Distributors
Regional motion control stockists and factory automation retrofit solution contractors.
Request AC Servo Motor Catalog & Factory Quote
Need 3D CAD step files, specialized winding voltage, or sample motors for prototype testing? Contact our motion control engineering team today. We respond within 8 working hours.
We're professional servo motor manufacturers and suppliers in China, specialized in providing high quality products and service. We warmly welcome you to wholesale customized servo motor from our factory.
servo motor, Permanent Magnet Synchronous Universal Servo Motor, Permanent Magnet Universal Servo Motor for Robot
